BALBOA EL SERIES SPA SYSTems
Device/Function |
EL 8000 |
EL 2000 |
Single Pump Control |
2 Speed |
2 Speed |
2nd Pump Control |
2 Speed |
2 Speed |
3rd Pump Control* |
2 Speed |
|
| 4th Pump Control* | 2 Speed |
|
| 5th Pump Control* | 1 Speed |
|
6th Pump Control* |
1 Speed |
|
Blower |
Multi-speed |
Single Speed |
Main Panel Capacity |
4 |
2 |
AX Panel Capacity |
4 |
1 |
COMPATIBLE TOPSIDES
| Panel Model |
Downloads |
Panel With No Overlay |
Part Number With Overlay |
Overlay Part Number |
|
Measurements: W=11.7" (29.71cm) , H=3.2" (8.12cm) |
52797-XX* |
54589-XX* | 11806 (Time, Warm, Mode/Prog, Cool, Jets1, Jets2, Jets3, Jets4, Invert, Fiber, Light, Option) | |
| 55536-XX* | 12037 (Time, Warm, Mode/Prog, Cool, Jets1, Jets2, Jets3, Jets4, Invert, Light, Blower, Jets5) | |||
| 52654-XX* | 40026 (Time, Warm, Mode/Prog, Cool, Jets1, Jets2, Jets3, Option, Invert, Fiber, Light, Blower) | |||
| 55580-XX* | 12132 (Time, Warm, Mode/Prog, Cool, Jets1, Jets2, Jets3, Jets4, Invert, Light, Blower, Option) | |||
ML700 Measurements: W=9.8" (24.89cm) , H=3.1" (7.87cm) |
ML700 Ref. Card Overlay Graphic Template for ML700 |
52798-XX* |
52649-XX* | 11281 (Time, Warm, Mode/Prog, Cool, Light, Blower, Jets1, Jets2) |
| 55693-XX* | 12016 (Time, Warm, Mode/Prog, Cool, Light, Jets3, Jets1, Jets2) | |||
| - |
12053 (Time, Warm, Mode/Prog, Cool, Light, Blower, Jets) | |||
ML554 Measurements: W=10.3" (26.16cm) , H=4.6" (11.68cm) |
55391-XX* | - |
- |
|
ML553 Measurements: W=7" (17.78cm) , H=3.4" (8.63cm) |
55381-XX* | - |
- |
|
ML551 Measurements: W=7.4" (18.79cm) , H=3.3" (8.38cm) |
53503-XX* |
53502-XX* |
11609 (Light, Mode, Jets1, Jets2, Blower, Warm, Cool) |
|
| 55304-XX* |
11899 (Light, Mode, Jets1, Jets2, Jets3, Warm, Cool) |
|||
| 55600-XX* |
12052 (Jets1, Light, Mode, Jets2, Jets3, Jets4, Warm, Cool) |
|||
ML550 Measurements: W=13.7" (34.79cm) , H=2.5" (6.35cm) |
53393-XX* |
54726-XX* | 11901 (Cool, Warm, Jets1, Jets2, Jets3, Light, Mode) | |
| - | 11909 (Cool, Warm, Jets1, Jets2, Blower, Light, Mode) | |||
| 55989-XX* | 12183 (Cool, Warm, Jets1, Jets2, Jets3, Jets4, Light, Mode) | |||
ML400 Measurements: W=7.5" (19.05cm) , H=2.3" (5.84cm) |
53291-XX* | 52684-XX* | 11345 (Jets, Aux, Temp, Light) | |
ML260 Measurements: W=7" (17.78cm) , H=2.1" (5.33cm) |
54271-XX* | 53684-XX* (With White Trim) | 11612 (Jets, Aux, Temp, Light) | |
| 54270-XX* (With Gray Trim) | 11612 (Jets, Aux, Temp, Light) | |||
ML240 Measurements: W=5.3" (13.46cm) , H=1.9" (4.82cm) |
Cutout Template for ML240 Overlay Graphic Template for ML240 |
54327-XX* |
53683-XX* (With White Trim) | 11611 (Jets, Aux, Temp, Light) |
| 54326-XX* (With Gray Trim) |
11612 (Jets, Aux, Temp, Light) | |||
ML200 Measurements: W=4.3" (10.92cm) , H=1.6" (4.06cm) |
Cutout Template for ML200 Overlay Graphic Template for ML200 |
53292-XX* | 52685-XX* | 11344 (Jets, Aux, Temp, Light) |
| 53238-XX* |
11393 (Warm, Cool, Jets, Light) |
• State of the art design
• Easier installation and serviceability
• Multi-level diagnostic capabilities

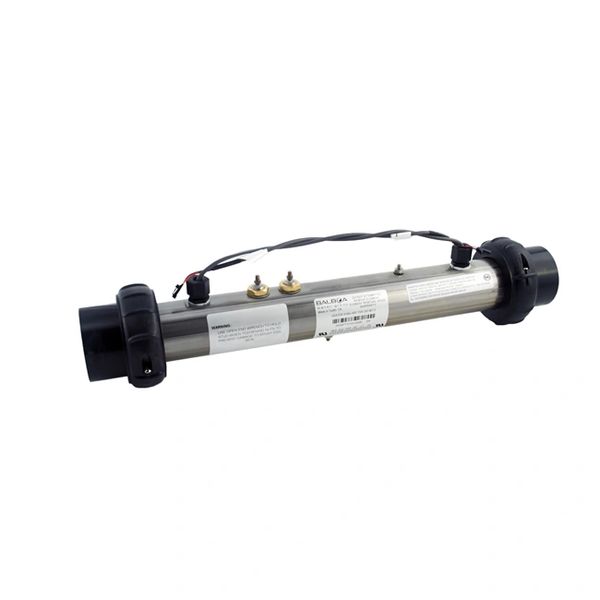

• M7® flow and temperature sensors - replaces failure-prone
mechanical pressure/flow switch

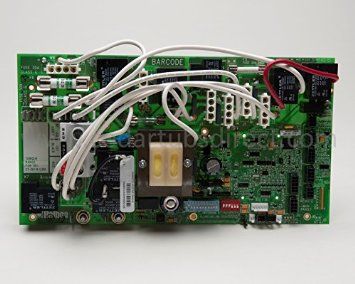

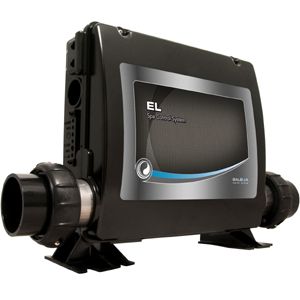

The Elite Series (EL) family of hot tub control systems were designed using Balboa's patented M7® temperature and water flow sensing technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control. Innovative features include having output connectors on-board, which eliminates a maze of wires in the enclosure and ultimately reduces assembly time and margin for error.
Flexible and High Reliability
The systems have a plastic enclosure to eliminate water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible power supply that can be wired for 120 or 240 volts, a 1.0, 1.5, 4.0, or 5.5 Kw heater and support ML panels.
Designed for Easy Installation and Service
The EL family is based on a common universal control platform, which increases feature flexibility while reducing installation and configuration problems. The units incorporate Balboa's patented M7® temperature probe technology, which eliminates the more failure prone pressure switches and simplifies the installation process by not having to drill additional holes in the spa.
Proven Reliability
With over 2 million controls in the spas worldwide utilizing the M7® technology, the EL series of spa control systems are built using M7® and deliver maximum performance and satisfaction. The EL series is a universal control platform, increasing feature flexibility and reducing configuration headaches. With this combination of our patented M7® temperature and water flow sensing technology, BWG leads the industry in quality and reliability.
